American Standard Type2 EV Portable Charger 1 Phase AC 32A Adjustable IP54

Certification
China Hunan Llano Electronic Technology Co., Ltd certification
I'm Online Chat Now

American Standard Type2 EV Portable Charger 1 Phase AC 32A Adjustable IP54

American Standard Type2 EV Portable Charger 1 Phase AC 32A Adjustable IP54
American Standard Type2 EV Portable Charger 1 Phase AC 32A Adjustable IP54 American Standard Type2 EV Portable Charger 1 Phase AC 32A Adjustable IP54 American Standard Type2 EV Portable Charger 1 Phase AC 32A Adjustable IP54 American Standard Type2 EV Portable Charger 1 Phase AC 32A Adjustable IP54

Large Image :  American Standard Type2 EV Portable Charger 1 Phase AC 32A Adjustable IP54

Product Details:
Place of Origin: Hunan, China
Brand Name: LLANO
Certification: CE,TUV
Model Number: Type 2 EV Portable Charger
Payment & Shipping Terms:
Minimum Order Quantity: 10 Sets
Packaging Details: Standard packing for export
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Piece/Pieces per month

American Standard Type2 EV Portable Charger 1 Phase AC 32A Adjustable IP54

Description
Product Name: EV Portable Charger Work For: Electric Vehicle
Terminal: Copper Alloy+ Silver Plating Plug Type: IEC62196
Certification: CE,TUV Connection: Plug In
IP Protection: IP54 Power: 7kw
Cable Length: 5M / Customizable Warranty: 1 Year
Charging Plug: Nema14-50 Charging Plug Working Temperature: -30℃- +50℃
High Light:

American Standard Type2 EV Portable Charger

,

Adjustable IP54 EV Portable Charger

                  Products Description

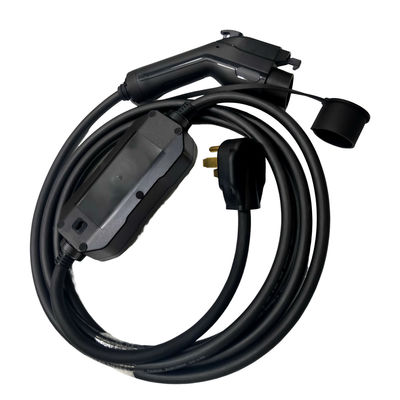

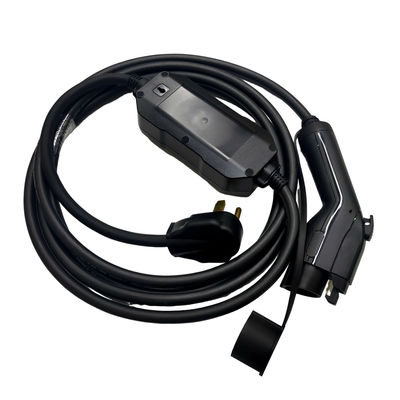

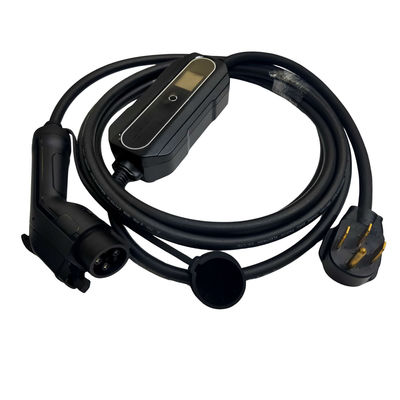

LLANO American Standard Type2 EV Portable Charger 1 Phase AC 32A Adjustable With IP54 Protection Level

This IEC62196 Standard electric vehicle charger with Nema14-50 charging plug is very easy

to use, portable, and safe. Enclosure material is thermoplastic, flame retardant grade UL94

V-0, the cable Material is TPE. the terminals material is Copper alloy, silver plating.



Description of EV Portable Charger:



1.1 Phase 32A 7KW Adjustable


2. IEC62196 Standard


3. Nema14-50 charging plug


Specifications Product Name EV Portable Charger
  Charging Plug Nema14-50 charging plug
  Rated Current 1 Phase 32A adjustable
  Power 7kw
  Working temperature -30~50℃
Material Enclosure Thermoplastic, flame retardant grade UL94 V-0
  Cable Material TPE
  Terminals/Pins Copper alloy, silver plating
Safety and warranty Certification CE,TUV
  Certification Standard IEC62196 Standard
  Protection Level IP54
  Warranty 1 year
Product parameter Dimension 38cm*38cm*.5cm
  Weight 3.5kg



American Standard Type2 EV Portable Charger 1 Phase AC 32A Adjustable IP54 0

                                                            1 Phase 32A adjustable



American Standard Type2 EV Portable Charger 1 Phase AC 32A Adjustable IP54 1

HUNAN LLANO ELECTRONIC TECHNOLOGY CO.,LTD.

ADD: No. 304, Block A12, Jindaoyuan(Phase VI) Industrial Park, 169 Huizhi Middle Road,

High Tech Development Zone, Changsha, Hunan, China.

Our products covers ECUs, change-over switches, emulators, MAP sensors, timing advance

processors, injector rails, reducers, EV portable charger and etc..



RAQ:



Q: How to use ev charger?

A: You need to connect the ev charger to the power supply and then insert the charging plug

into your car. If you have selected the RFID card, it will only start charging after you have

swiped the RFID card. app version you can control the start or stop of charging on your mobile

phone, and you can also make appointments to charge at certain times.



Q: What ev charger do I need?

A: It is best to choose according to the OBC of your vehicle, e.g. if the OBC of your vehicle is

3.5KW then you can only charge your vehicle at 3.5KW even if you buy 7KW or 22KW.



Q: Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and

fixtures.





Why choose us?











Abundant autogas product types. Our products cover most of popular types in the market,

including standard products and customized products. You can always find the products you

want in our shop.



Strong R& D capability. We developed several series of independently developed series of

products and numerous hardware and software. You can always find a solution for

customization requirement in our shop.



Reliable quality. We have a strict QC system and constant after-sale customer service.You

can always get high quality products in our shop.





American Standard Type2 EV Portable Charger 1 Phase AC 32A Adjustable IP54 2

CAUTION:



1. Power-supply side input cable should be at least 3*2.5 mm recommended 3*4 mm), with a

standard 16A socket. It is suggested that the power distribution is done by the professionals.



2. Don't put your fingers into the charging connector when the power plug is still connected

to the power.



3. Don't use this EV charging box when the cable is damaged.



4. Don't step on, fold, or knot the cable.



5. Don't drop the EV charging boxor place a heavy object on it.



American Standard Type2 EV Portable Charger 1 Phase AC 32A Adjustable IP54 3

American Standard Type2 EV Portable Charger 1 Phase AC 32A Adjustable IP54 4

American Standard Type2 EV Portable Charger 1 Phase AC 32A Adjustable IP54 5
