Product Details:
|
| Product Name: | EV Portable Charger | Work For: | Electric Vehicle |
|---|---|---|---|
| Terminal: | Copper Alloy+ Silver Plating | Plug Type: | IEC62196 |
| Certification: | CE,TUV | Connection: | Plug In |
| IP Protection: | IP54 | Power: | 3.5kw |
| Cable Length: | 5M / Customizable | Warranty: | 1 Year |
| Charging Plug: | Schuko Charging Plug | Working Temperature: | -30℃- +50℃ |
| High Light: | 1 Phase 2.1 EV Portable Charger,TUV Certification EV Portable Charger |
||

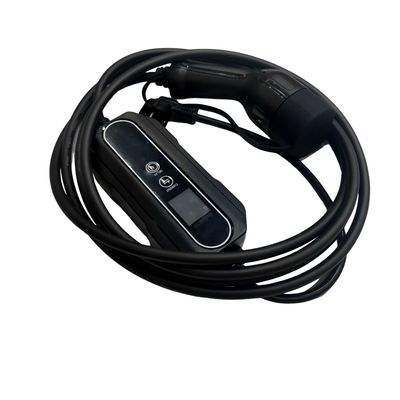

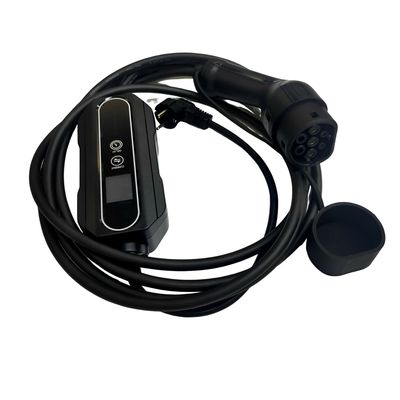

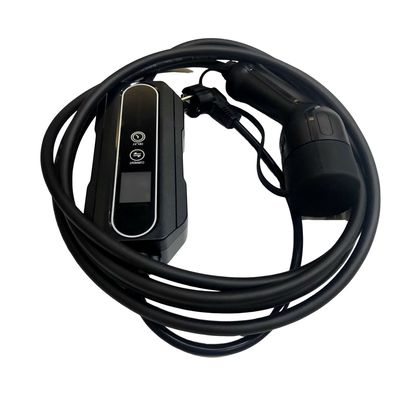

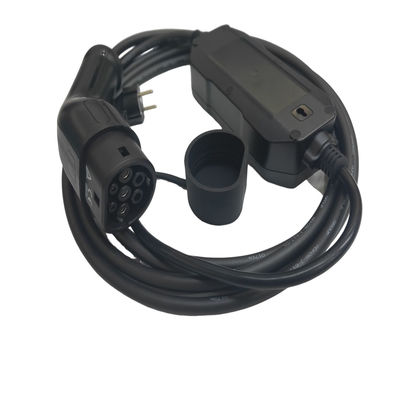

This European Standard electric vehicle charger with schuko charging plug is very easy to
use, portable, and safe. It's protection level is IP54, it's high quality with CE, TUV Certification.
Description of EV Portable Charger:
1.1 Phase 16A 3.5KW Adjustable
2. IEC62196 Standard
3. Schuko charging plug
| Specifications | Product Name | EV Portable Charger |
| Charging Plug | Schuko charging plug | |
| Rated Current | 1 Phase 16A Adjustable | |
| Power | 3.5kw | |
| Working temperature | -30~50℃ | |
| Material | Enclosure | Thermoplastic, flame retardant grade UL94 V-0 |
| Cable Material | TPU | |
| Terminals/Pins | Copper alloy, silver plating | |
| Safety and warranty | Certification | CE,TUV |
| Certification Standard | IEC62196 Standard | |
| Protection Level | IP54 | |
| Warranty | 1 year | |
| Product parameter | Dimension | 38cm*38cm*8.5cm |
| Weight | 2.5kg |
1 Phase 16A Adjustable 3.5KW
Hunan Llano Electronic Technology Co.,Ltd. is founded by a group of specialists who have
been engaged in autogas products since 2002, which focus on the production of cng and lpg
conversion kit. We are leading professional manufacturer located in Changsha, Hunan, China.
Our products mainly about various models of ECUs, change-over switches, emulators, MAP
sensors, timing advance processors, injector rails, reducers,EV portable charger and etc..
RAQ:
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and
fixtures.
Q: What is your terms of delivery?
A: EXW, FOB, CIF.
Q: What is your terms of payment?
A: We accept all methods of payment: paypal, T/T, credit card, Alibaba assurance, West Union
... Please contact us for more details.
OUR SERVICE:
1. Your inquiry will be responded within 24 hours.
2. Strict delivery to ensure your arrangement.
3. Professional technical team. strictly control each inspection process to ensure product quality.
4. If there are any installation problems, our engineer will solve the problem in the first time.
CAUTION:
1. Don't place the charging cable near a high-temperature object when charging.
2. Don't operate the EVSE in temperatures beyond its operating range of-30°C to 50°C.
3. Power-supply side input cable should be at least 3*2.5 mm recommended 3*4 mm), with
a standard 16A socket. It is suggested that the power distribution is done by the professionals.
4. Don't put your fingers into the charging connector when the power plug is still connected
to the power.
5. Don't use this EV charging box when the cable is damaged.
