Product Details:
|
| Product Name: | CNG Pressure Regulator | Work For: | CNG Cars |
|---|---|---|---|
| System: | CNG Sequential Injection System | Material: | Die Cast Aluminium Body |
| Color: | Silver And Blue | Quality: | 100% Professional Test |
| Certificate: | ISO 9001 | Warranty: | 1 Year |
| Highlight: | 2Stage car gas pressure regulator,CNG Car Gas Pressure Regulator,2 Stage cng reducer |
||

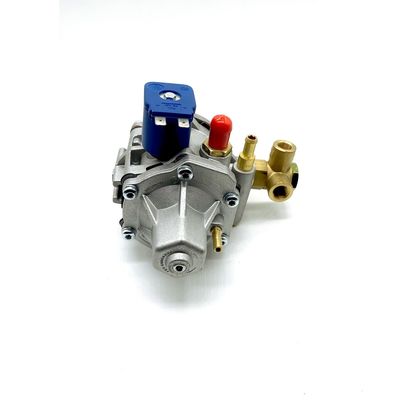

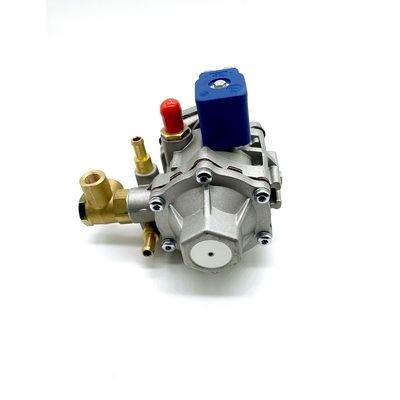

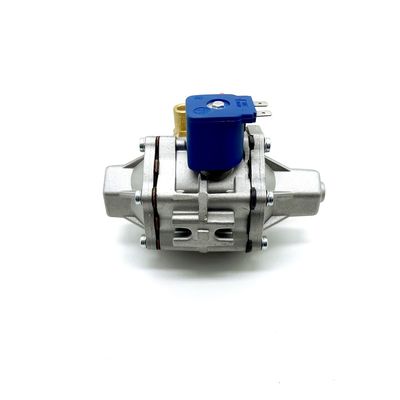

AT12 CNG reducer is used for CNG sequential injection systems. It has 2 stages for pressure
reducing and improved heating circuit. It has 2 possible water connection layouts for easy
installation. This model is equiped with a low pressure solenoid valve.
| Gas fuel type | CNG |
| Work for | CNG sequential injection system |
| Material | Die cast aluminium body |
| Size | 12cm*15cm*15.5cm |
| Weight | 1.8 kg |
| Max inlet pressure | 26 MPa |
| Outlet pressure | 160 ~ 280 kPa |
| Coil voltage | 12 V DC |
| Coil power | 17 W |
| Inlet Connection | M12x1 pipe Ø 6 mm |
| Outlet connection | Swivel fitting Ø 12.5 mm |
| Coolant liquid connections | for rubber pipe Ø 8 mm |
| MAP connection | for rubber pipe Ø 6 mm |
| Working temperature | -40~120 °C |
| Engine power | up to 125 kW |
