Product Details:
|
| Product Name: | CNG Pressure Regulator | Work For: | CNG Cars |
|---|---|---|---|
| System: | Traditional CNG Carbureted System | Material: | Die Cast Aluminium Body |
| Color: | Silver And Blue | Quality: | 100% Professional Test |
| Certificate: | ISO 9001 | Warranty: | 1 Year |
| Highlight: | 140 Hp autogas regulator,Autogas fuel injection regulator,3 Stage autogas regulator |
||

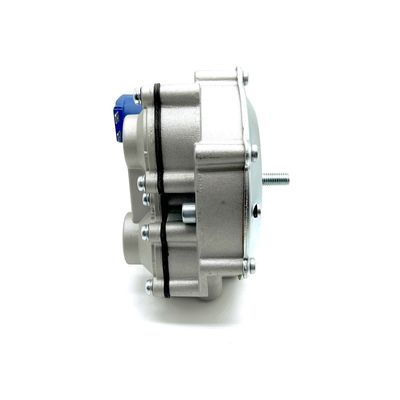

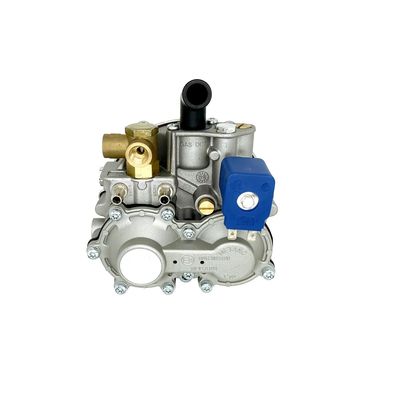

AT04 CNG reducer is used for traditional CNG carburated systems. It has 3 stages for
pressure reducing and double regulation system.
| Gas fuel type | CNG |
| Work for | Traditional CNG Carbureted System |
| Material | Die cast aluminium body |
| Size | 15.5cm*19cm*11cm |
| Weight | 2.12 kg |
| Max inlet pressure | 26 MPa |
| Coil voltage | 12 V DC |
| Coil power | 17 W |
| Inlet Connection | M12x1 pipe Ø 6 mm |
| Outlet connection | Swivel fitting Ø 19 mm |
| Coolant liquid connections | for rubber pipe Ø 8 mm |
| Working temperature | -40~120 °C |
| Engine power | Up to 140 kW |
