Product Details:
|
| Product Name: | CNG Pressure Gauges | Work For: | CNG Cars |
|---|---|---|---|
| Inspective Pressure: | 0~400 Bar | Material: | Stainless Steel And Brass |
| Color: | Black | Quality: | 100% Professional Test |
| Certificate: | ISO 9001 | Warranty: | 1 Year |
| High Light: | Automotive CNG Pressure Gauges,12V CNG Pressure Gauges,CNG pressure sensor meter |
||

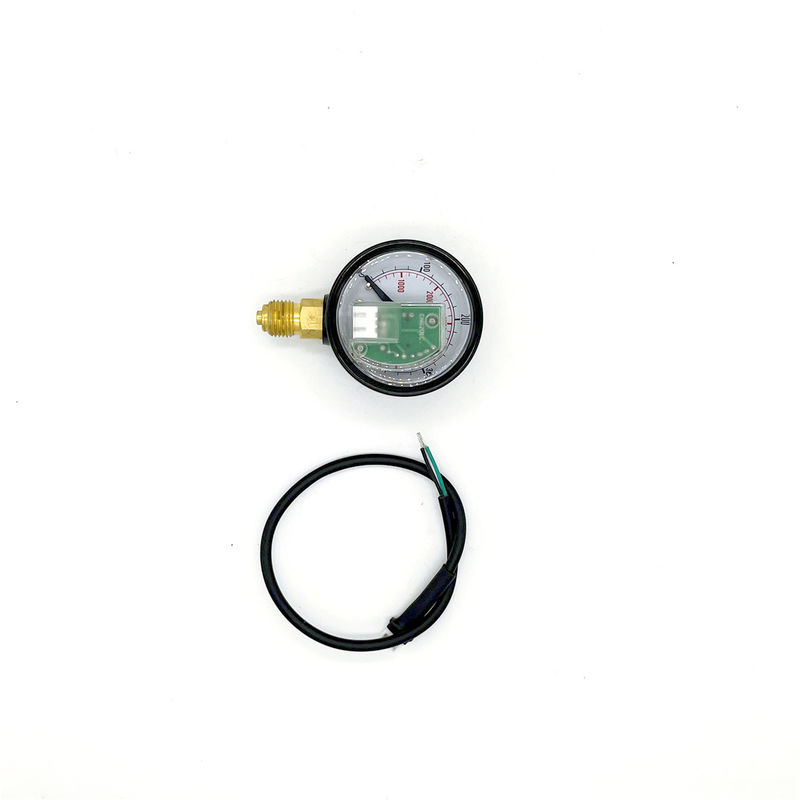

CNG pressure gauge is used to measure the amount of gas fuel in the CNG cyliinder of the
autogas fuel system. It is installed between the inlet of the CNG reducer and the CNG gas
cylinder.
It is integrated with a electronic gas pressure sensor which can converts the CNG pressure
measurement to analog signals and sent them to the autogas ECU or an indicator type
change-over switch. The CNG amount can be thus displayed by indicators of change-over
switch and calibration software.
| Nominal diameter | 50 mm |
| Accuracy grade | 2.5 |
| Output signal | ± 0.25 V |
| Installation type | Radial, axial |
| Material | Cover: stainless steel; Joint: brass |
| Joint thread |
G1 / 4 (Pf1 / 4), M14 × 1.5, ZG1 / 4 (pT1 / 4), npt1 / 4 |
| Power supply voltage | DC 12 V |
| Output voltage | 0~4V |
