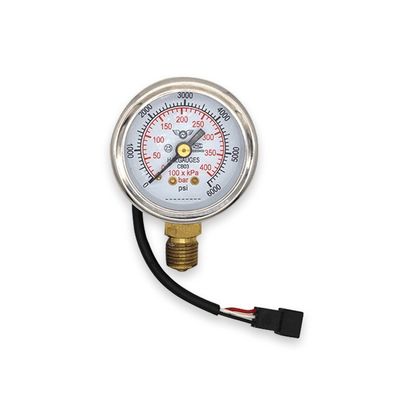

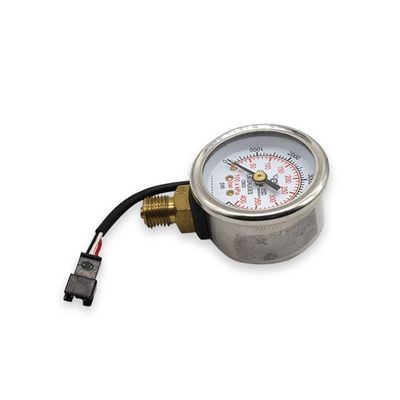

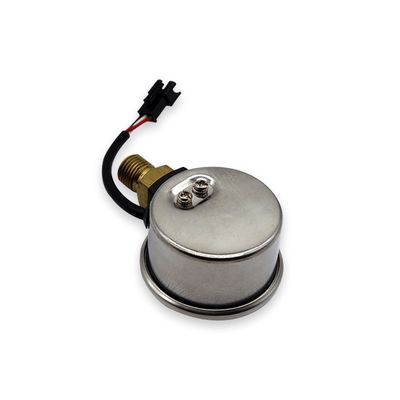

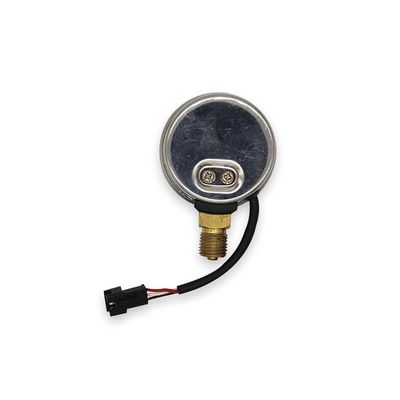

Product Details:
|
Product Name: | CNG Pressure Gauges | Work For: | CNG Cars |
---|---|---|---|
Inspective Pressure: | 0~200 Bar | Dimension: | Φ52mmx35mm |
Color: | Silver | Quality: | 100% Professional Test |
Certificate: | ISO 9001 | Warranty: | 1 Year |
Highlight: | Car CNG Pressure Gauges,200 bar CNG Pressure Gauges,200 Bar cng manometer |
PARAMETER
1. Formal dimension (mm): Φ52x35.The screw thread of interface is the metric system tube
screw thread M14x1.5
2. Inspective pressure:0--200 bar.
3. Input voltage: DC12V
4. Output voltage:5-0V
WIRE CONNECTION
The wiring harness of connecting with sensor:
1. The short BROWN wire which connected with circular connector in the one and connects
with the cathode of electrical source (or to the ground).
2. The WHITE wire connects with the tolerance signal importer of the change-over switch.
3. The GREEN wire connects with the +12V electrical source.
INSTALLION
1. The connection should be correct. After installing, it could work accurately without
adjusting.
2. After filling with GAS, if the pointer of manometer is showed correctly and the RED light is
on at all times, that means the manometer sensor is broken if the change-over switch is
natural.
Formal dimension | φ5.2cm*3.5cm |
Inspective pressure | 0~200bar |
Input voltage | DC 12V |
Output voltage | 0~5V |
