Product Details:
|
| Product Name: | CNG Pressure Gauges | Work For: | CNG Cars |
|---|---|---|---|
| Inspective Pressure: | 0~400 Bar | Material: | Stainless Steel And Brass |
| Color: | Black | Quality: | 100% Professional Test |
| Certificate: | ISO 9001 | Warranty: | 1 Year |
| High Light: | pressure CNG Gas Meter,Autogas Conversion CNG Gas Meter,Pressure Sensor CNG Fuel Gauge |
||

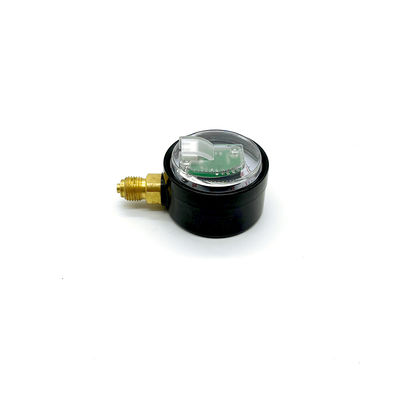

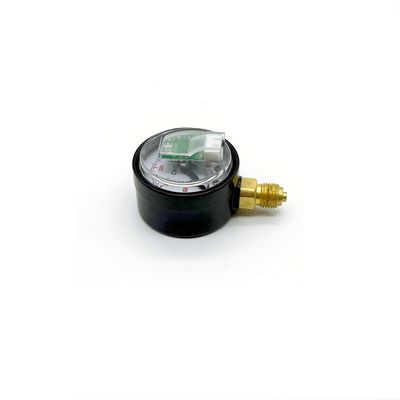

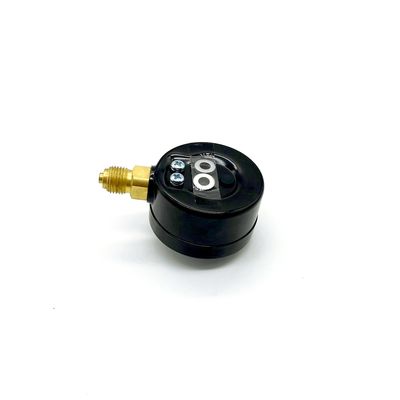

CNG pressure gauge is an important accessory of natural gas vehicle. It is installed on the
air inlet valve connected between the CNG pressure regulator and the steel cylinder, and its
main function is to display the pressure of natural gas in the gas cylinder.
A gas pressure sensor is integrated in the gauge, which can transmit the pressure signal to
the petrol-gas change-over switch in the car cab, so as to display the amount of natural gas
in the cylinder by switch indicator lights.
| Nominal diameter | 50 mm |
| Accuracy grade | 2.5 |
| Output signal | ± 0.25 V |
| Installation type | Radial, axial |
| Material | Cover: stainless steel; Joint: brass |
| Joint thread |
G1 / 4 (Pf1 / 4), M14 × 1.5, ZG1 / 4 (pT1 / 4), npt1 / 4 |
| Power supply voltage | DC 12 V |
| Output voltage | 0~4V |
