Product Details:
|
Product Name: | CNG Pressure Regulator | Work For: | CNG Cars |
---|---|---|---|
System: | CNG Sequential Injection System | Material: | Die Cast Aluminium Body |
Color: | Silver And Blue | Quality: | 100% Professional Test |
Certificate: | ISO 9001 | Warranty: | 1 Year |
Highlight: | Die Cast Aluminium CNG Pressure Regulator,blue CNG Pressure Regulator,CNG car pressure regulator |

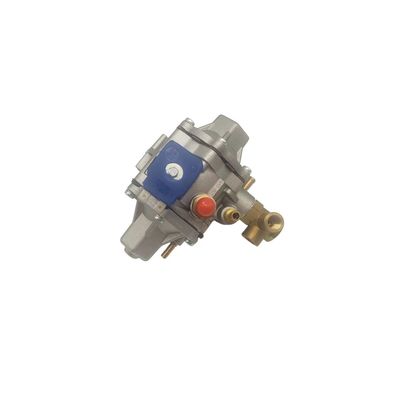

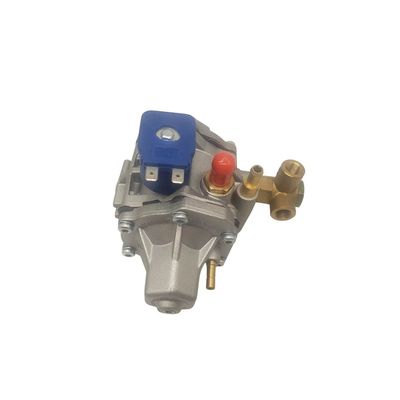

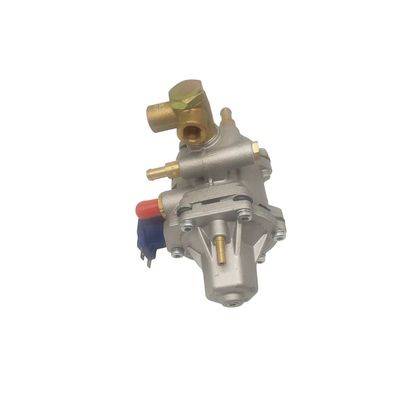

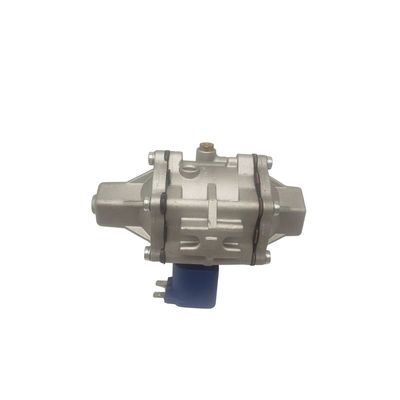

The LN-AT12 pressure regulator is a pressure reducer for traditional CNG sequential injection
systems.
LN-AT12 CNG pressure regulator is a 2-stage pressure reducer for CNG sequential injection
systems. It is equipped with a low pressure solenoid valve.
Gas fuel type | CNG |
Work for | CNG sequential injection system |
Material | Die cast aluminium body |
Working voltage | 8V~12.5V (DC 12V) |
Inlet pressure | 26MPa |
Outlet pressure | adjustable from 160 to 280 kPa |
Inlet Connection | M12x1 pipe Ø 6 mm |
Outlet Connection | Swivel fitting Ø 12.5 mm |
Size | 12cm*15cm*15.5cm |
Weight | 1.8kg |
Working temperature | -40~120 °C |
