Product Details:
|
| Product Name: | CNG Pressure Regulator | Work For: | CNG Cars |
|---|---|---|---|
| System: | CNG Sequential Injection System | Material: | Die Cast Aluminium Body |
| Color: | Silver And Black | Quality: | 100% Professional Test |
| Certificate: | ISO 9001 | Warranty: | 1 Year |
| High Light: | Autogas Conversion CNG Pressure Regulator,Two Stage CNG Pressure Regulator,Autogas Conversion cng reducer |
||

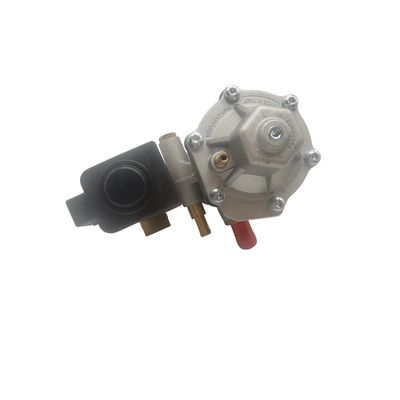

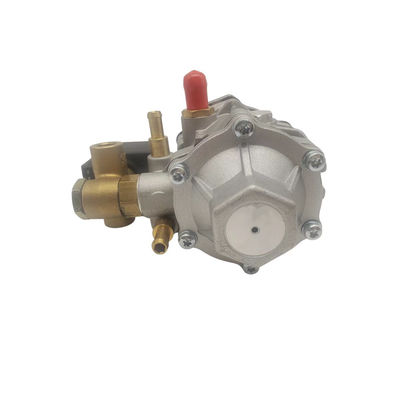

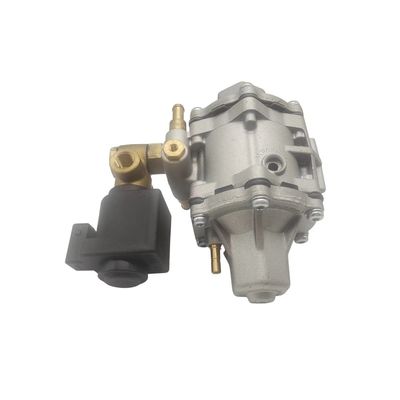

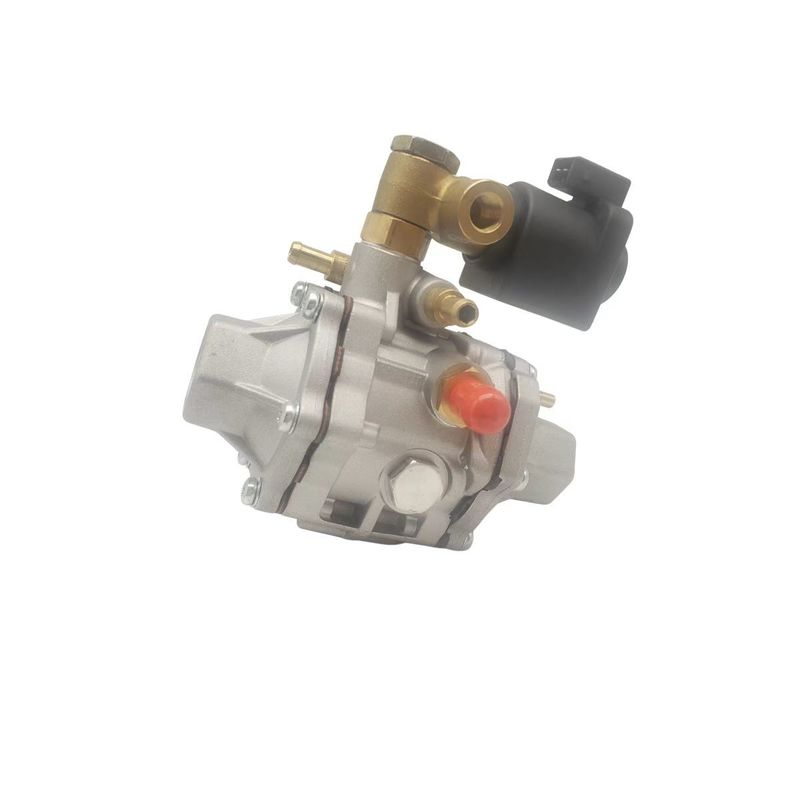

The LN-AT12H pressure regulator is a high pressure reducer for traditional CNG sequential
injection fuel systems.
LN-AT12H CNG pressure regulator is a 2-stage pressure reducer for CNG sequential injection
systems. It is equipped with a high pressure solenoid valve.
| Gas fuel type | CNG |
| Work for | CNG sequential injection system |
| Material | Die cast aluminium body |
| Working voltage | 8V~12.5V (DC 12V) |
| Inlet pressure | 26MPa |
| Outlet pressure | adjustable from 160 to 280 kPa |
| Inlet Connection | M12x1 pipe Ø 6 mm |
| Outlet Connection | Swivel fitting Ø 12.5 mm |
| Size | 17.5cm*11cm*15.5cm |
| Weight | 2kg |
| Working temperature | -40~120 °C |
Our Main products cover a diversity of various models of ECUs, change-over switches,
emulators, MAP sensors, timing advance processors, injector rails, reducers, etc.You can
purchase products from our website, or you also can customize your products. There are
many choices for you.
