275kW LPG Pressure Reducer Autogas Regulator With Dynamic Pressure Compensation System

Certification
China Hunan Llano Electronic Technology Co., Ltd certification
I'm Online Chat Now

275kW LPG Pressure Reducer Autogas Regulator With Dynamic Pressure Compensation System

275kW LPG Pressure Reducer Autogas Regulator With Dynamic Pressure Compensation System
275kW LPG Pressure Reducer Autogas Regulator With Dynamic Pressure Compensation System 275kW LPG Pressure Reducer Autogas Regulator With Dynamic Pressure Compensation System

Large Image :  275kW LPG Pressure Reducer Autogas Regulator With Dynamic Pressure Compensation System

Product Details:
Place of Origin: Hunan, China
Brand Name: LLANO
Certification: ISO9001
Model Number: LN-AT13XP
Payment & Shipping Terms:
Minimum Order Quantity: 100 Sets
Packaging Details: Standard packing for export
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15000 Piece/Pieces per month

275kW LPG Pressure Reducer Autogas Regulator With Dynamic Pressure Compensation System

Description
Product Name: LPG Pressure Regulator Work For: LPG Cars
System: Sequential Injection System Material: Die Cast Aluminium Body
Color: Silver And Blue Quality: 100% Professional Test
Certificate: ISO 9001 Warranty: 1 Year
High Light:

275kW LPG Pressure Reducer

,

LPG autogas regulator

,

Dynamic Pressure Compensation LPG Pressure Reducer


                  Products Description

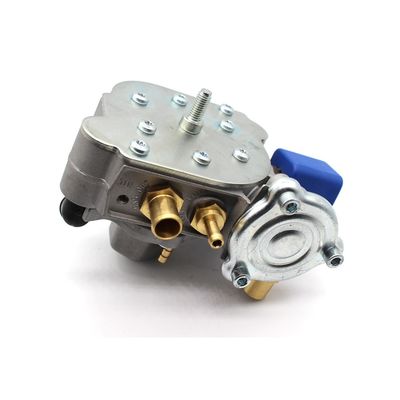

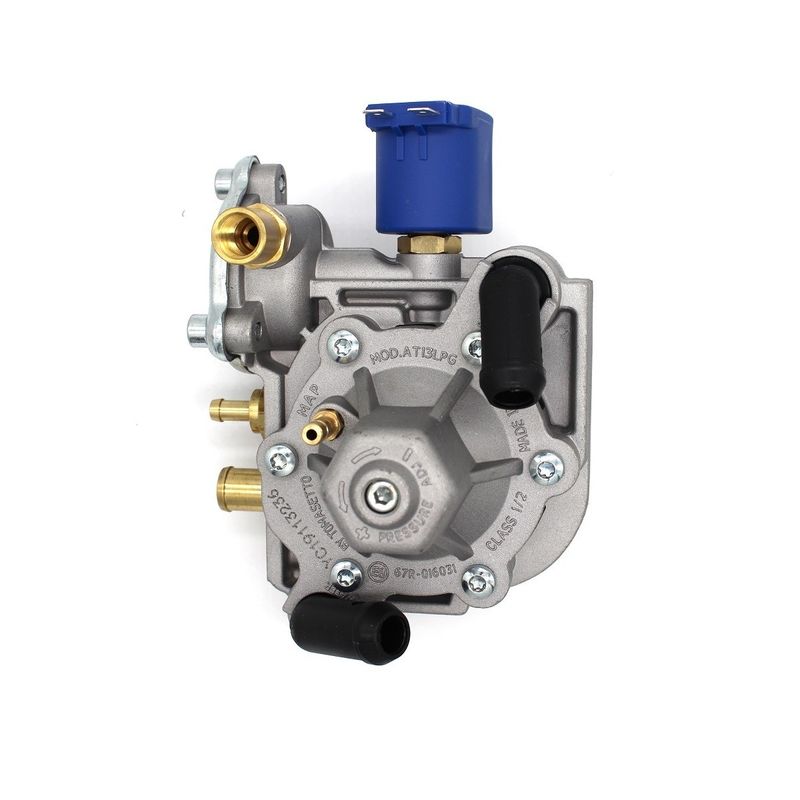

275kW LPG Pressure Regulator with Dynamic Pressure Compensation System



The LPG reducer has the following features

  • double membrane system
  • double gas outlet for direct connection of 2 rails
  • internal discharge of safety valve through MAP
  • high flow rate with very stable and adjustable outlet pressure
  • additional plate and redesigned water and gas circuits
  • integrated solenoid valve and filter at the inlet



Gas fuel type LPG
Material Die cast aluminium body
Weight 1.7 kg
Size 17cm*12cm*15cm
Max inlet pressure 3 MPa
Outlet pressure Adjustable 90~180 kPa
Coil voltage 12 V DC
Coil power 17W
Inlet connection M10x1 pipe Ø 8 mm
Outlet connection Fixed fitting Ø 12.5 mm
Engine power Up to 275 kW
