Separated Gas And Water Circuit Autogas LPG Pressure Regulator 125W

Separated Gas And Water Circuit Autogas LPG Pressure Regulator 125W
Separated Gas And Water Circuit Autogas LPG Pressure Regulator 125W Separated Gas And Water Circuit Autogas LPG Pressure Regulator 125W Separated Gas And Water Circuit Autogas LPG Pressure Regulator 125W Separated Gas And Water Circuit Autogas LPG Pressure Regulator 125W

Large Image :  Separated Gas And Water Circuit Autogas LPG Pressure Regulator 125W

Product Details:
Place of Origin: Hunan, China
Brand Name: LLANO
Certification: ISO9001
Model Number: LN-AT09N
Payment & Shipping Terms:
Minimum Order Quantity: 100 Sets
Packaging Details: Standard packing for export
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15000 Piece/Pieces per month

Separated Gas And Water Circuit Autogas LPG Pressure Regulator 125W

Description
Product Name: LPG Pressure Regulator Work For: LPG Cars
System: Sequential Injection System Material: Die Cast Aluminium Body
Color: Silver And Blue Quality: 100% Professional Test
Certificate: ISO 9001 Warranty: 1 Year
High Light:

LPG gas pressure reducer

,

125W LPG Pressure Regulator

,

Separated Circuit LPG Pressure Regulator


                  Products Description

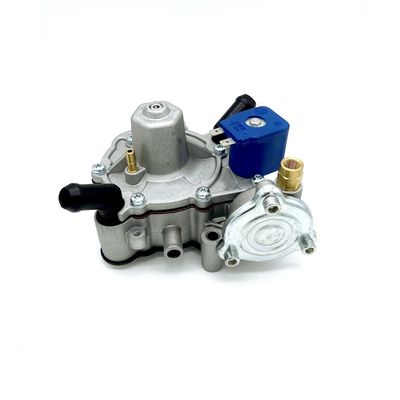

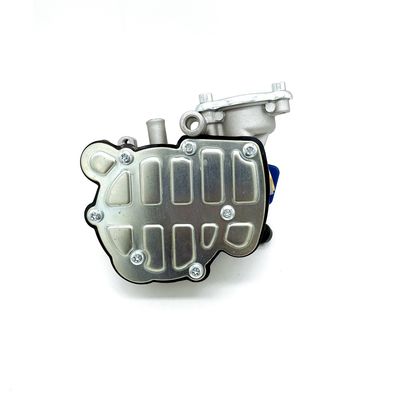

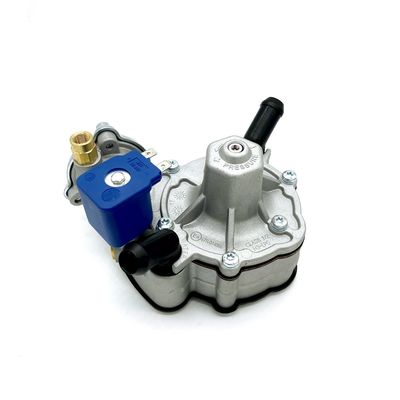

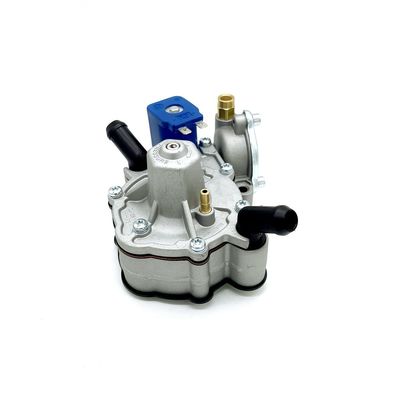

125W LPG Pressure Regulator with Separated Gas Circuit and Water Circuit



AT09N LPG pressure regulator has the following features

  • integrated with solenoid valve
  • separated gas circuit and water circuit
  • pre-heating at gas inlet
  • improved heat exchange
  • improved water fittings’fixing system



Gas fuel type LPG
Material Die cast aluminium body
Weight 1.3 kg
Size 13cm*13cm*11cm
Max inlet pressure 3 MPa
Outlet pressure Adjustable 90~180 kPa
Coil voltage 12 V DC
Coil power 17W
Inlet connection M10x1 pipe Ø 6 mm
Outlet connection Fixed fitting Ø 12 mm
Engine power Up to 125 kW



Separated Gas And Water Circuit Autogas LPG Pressure Regulator 125W 0
