High Performance 4 Cylinder Grey LPG CNG Injector Rail For Fuel Gas Injection System

Certification
China Hunan Llano Electronic Technology Co., Ltd certification
I'm Online Chat Now

High Performance 4 Cylinder Grey LPG CNG Injector Rail For Fuel Gas Injection System

High Performance 4 Cylinder Grey LPG CNG Injector Rail For Fuel Gas Injection System
High Performance 4 Cylinder Grey LPG CNG Injector Rail For Fuel Gas Injection System High Performance 4 Cylinder Grey LPG CNG Injector Rail For Fuel Gas Injection System High Performance 4 Cylinder Grey LPG CNG Injector Rail For Fuel Gas Injection System High Performance 4 Cylinder Grey LPG CNG Injector Rail For Fuel Gas Injection System

Large Image :  High Performance 4 Cylinder Grey LPG CNG Injector Rail For Fuel Gas Injection System

Product Details:
Place of Origin: Hunan, China
Brand Name: LLANO
Certification: ISO9001
Model Number: LN-LIG1
Payment & Shipping Terms:
Minimum Order Quantity: 100 Sets
Packaging Details: Standard packing for export
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15000 Piece/Pieces per month

High Performance 4 Cylinder Grey LPG CNG Injector Rail For Fuel Gas Injection System

Description
Product Name: LPG CNG Injector Work For: CNG Or LPG Cars
Cylinder Number: 4 Cylinder Resistance: 2 Ohm Or 3 Ohm
Color: Grey Quality: 100% Professional Test
Certificate: ISO 9001 Warranty: 1 Year
High Light:

Grey LPG CNG Injector

,

Fuel Gas LPG CNG Injector

,

4 Cylinder lpg injector rail

                  Products Description

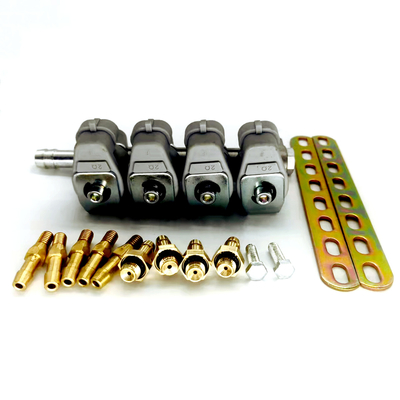

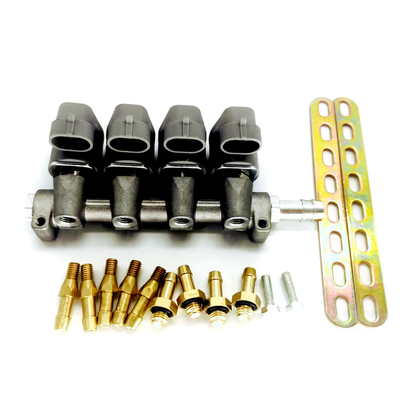

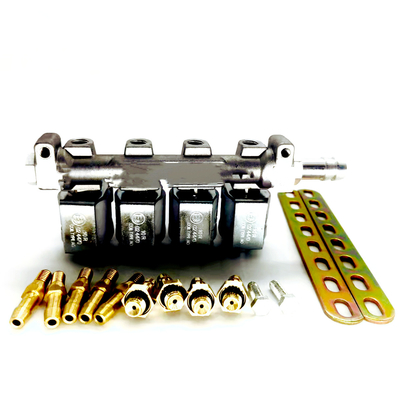

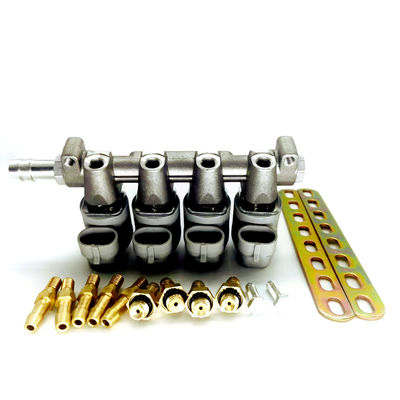

LLANO 4 Cylinder LN-LIG1 LPG CNG Injector Rail for LPG CNG Fuel Injection System



The LN-LIG1 injects the compressed natural gas into the gas rail or the cylinder regularly

and quantitatively according to the injection quantity calculated by the ECU.



Gas fuel type LPG or CNG
Cylinder number 4 cylinder
Inlet gas fitting φ10mm, φ12 mm, φ14mm, φ16mm
Outlet gas fitting Calibrated nozzles M8x1
Supply Voltage 10.8~14.4V (Comon DC12V)
Work Pressure 0.5~2.0 bar
Maximum pressure 3.0 bar
The high frequently rate 167Hz
Calibrated hole range 1.0~2.75 mm (0.25 mm step)
Temperature range for LPG -20 ~120°C
Temperature range for CNG -40 ~120°C
Closing time 1.9ms
Opening time 2.5ms, 2.8ms, 3.2ms
Resistance 3 Ohm
