Product Details:
|
| Product Name: | Solenoid Valve Integrated LPG Filter | Work For: | LPG Cars |
|---|---|---|---|
| Material: | Aluminium | Gas Chanel: | Straight |
| Color: | Silver And Bronze | Quality: | 100% Professional Test |
| Certificate: | ISO 9001 | Warranty: | 1 Year |
| High Light: | Aluminum LPG CNG Filter,Pressure Regulator LPG CNG Filter,Solenoid Valve Integrated cng filter replacement |
||

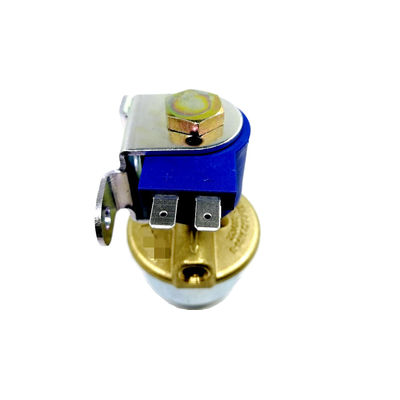

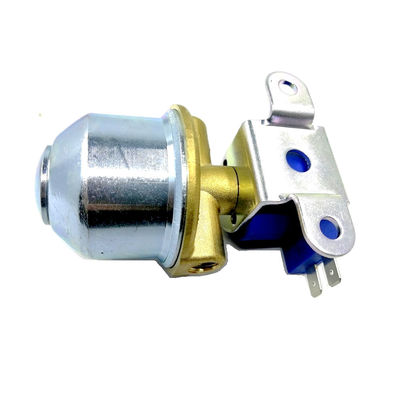

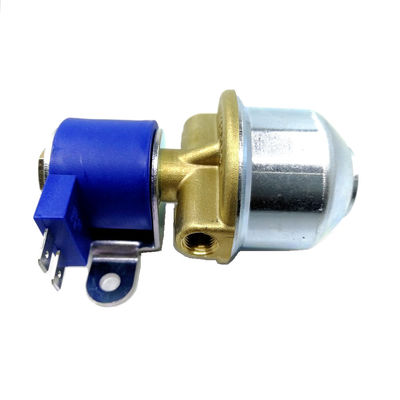

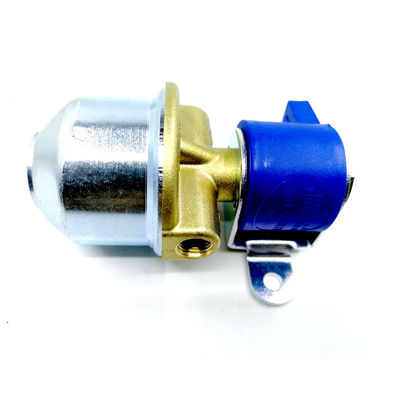

LN-EVF180 is a aluminium solenoid valve with integrated filter and a straight gas
channel.
Function:
1. Controlled by the change-over switch, it is used to connect or cut off the LPG fuel supply
channel. LPG solenoid valve is equipped with impurity filter cartridge and can filter physical
impurities in LPG. It is recommended to replace the cartridge within 1 to 3 months. High
pressure air can be used to blow out impurities during normal maintenance.
2. The LPG solenoid valve is connected with copper or steel gas pipe, installed between the
LPG reducer and the LPG multivalve, and close to the LPG reducer as much as possible.
The connecting gas pipe shall be coiled in a ring shape for reinstallation and shearing.
| Fuel type | LPG |
| Gas chanel | Straight |
| Material | Aluminium |
| Wroking voltage | DC 12V |
| Min. working voltage | DC 8V |
| Rated working pressure | ≤ 2.2 MPa |
| Flow direction | Mono-direction |
| Working ambient temperature | -40~120 ℃ |
| Working ambient humidity | 5%~100% |
