CNG LPG 4 Cylinder Injector Emulator For Single Point Injection System

CNG LPG 4 Cylinder Injector Emulator For Single Point Injection System
CNG LPG 4 Cylinder Injector Emulator For Single Point Injection System CNG LPG 4 Cylinder Injector Emulator For Single Point Injection System CNG LPG 4 Cylinder Injector Emulator For Single Point Injection System CNG LPG 4 Cylinder Injector Emulator For Single Point Injection System

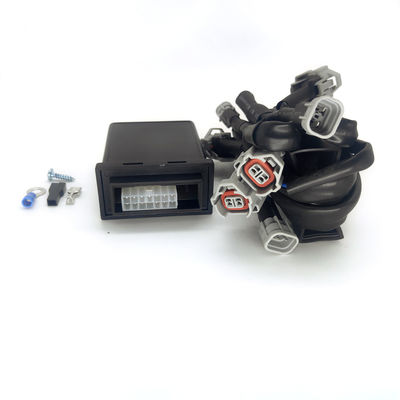

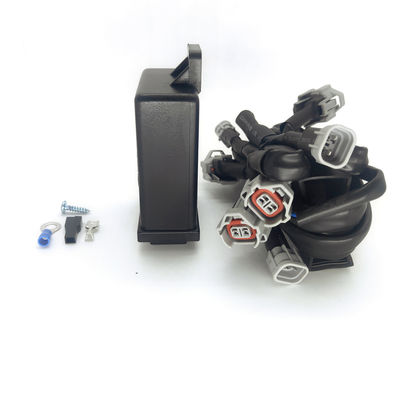

Large Image :  CNG LPG 4 Cylinder Injector Emulator For Single Point Injection System

Product Details:
Place of Origin: Hunan, China
Brand Name: LLANO
Certification: ISO9001
Model Number: LN-FX04
Payment & Shipping Terms:
Minimum Order Quantity: 100 Sets
Packaging Details: Standard packing for export
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15000 Piece/Pieces per month

CNG LPG 4 Cylinder Injector Emulator For Single Point Injection System

Description
Product Name: Injector Emulator Engine Type: 4 Cylinder
Work For: CNG And LPG Cars System: Single Point Injection Systems
Material: ABS Plastic Color: Black
Quality: 100% Professional Test Certificate: ISO 9001
Warranty: 1 Year
Highlight:

4 Cylinder Injector Emulator

,

Single Point Injector Emulator

,

4 Cylinder cng emulator


                  Products Description

LLANO LN-FX04 4 Cylinder Injector Emulator for Single Point Injection System



Injectors Emulators FX04 is an device that cut – off and simulates injector operation when

vehicle is used with gas, thus avoiding ignition of the check engine warning light and possible

malfunctions due to injectors cut – off data memorized in the injection electronic control box.



This new emulator combines three different types of simulations in one sole product and

simulations are selected by means of two switches. This means that Injectors Emulators

Fx04, by simply combining different types of wiring harness according to different types of

connectors fitted to injectors, can be used on the majority of European, American and

Japanese vehicles: it simulates, in fact, full – group and sequential injections without

distinction.



Gas fuel type CNG or LPG
Work for Injection systems
Engine type 4 cylinder
Material ABS Plastic
Shape Rectangular
Connector type 14 pin
Weight 0.3 kg
Size 11cm*3.5cm*8cm
Power supply voltage 10~14 V (DC 12V)
Woking temperature -40~110ºC
Emulation for injectors 11~16 Ω
Adjustment of overlap time for switching from petrol to gas Approximately 0~1 second



CNG LPG 4 Cylinder Injector Emulator For Single Point Injection System 0
