Product Details:
|
| Product Name: | Autogas MAP Sensor | Work For: | CNG And LPG Cars |
|---|---|---|---|
| Material: | ABS Plastic | Color: | Black |
| Quality: | 100% Professional Test | Certificate: | ISO 9001 |
| Warranty: | 1 Year | Compatible With: | AC Type ECU |
| High Light: | CNG LPG MAP Sensor,5 Pin LPG MAP Sensor,5 Pin CNG MAP Sensor |
||

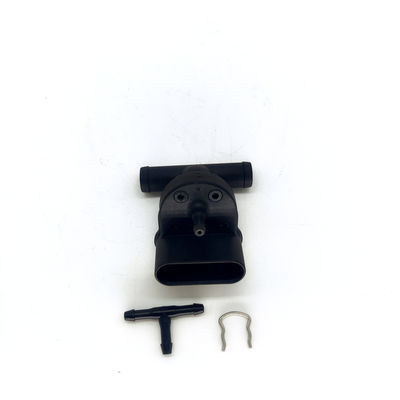

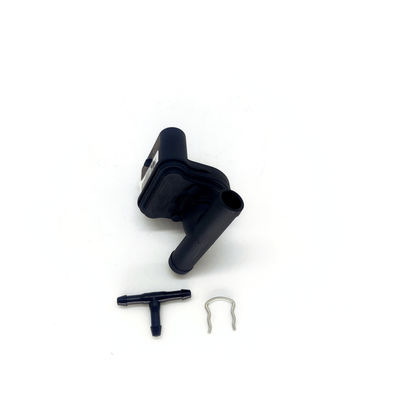

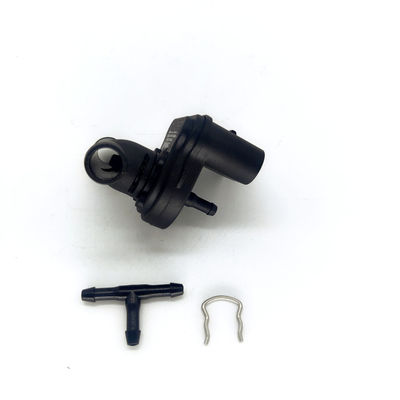

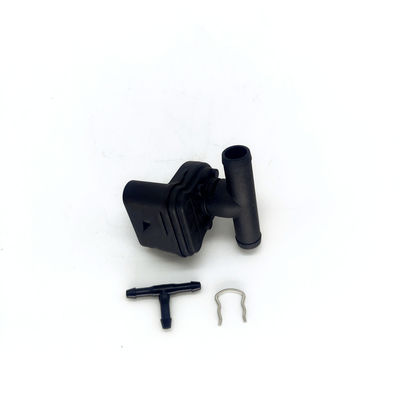

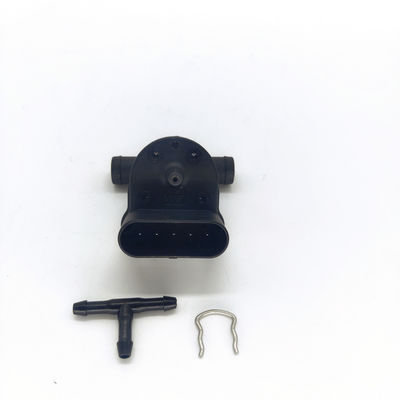

LN-MAP05 MAP sensor is a detection device that detects the change of absolute pressure
in the manifold accoring to the speed and load of the engine, then convert the pressure
measurement to electrical signal and send it to the ECU, so as to control the fuel injection
amount.
Description of LN-MAP05 map sensor:
1. Applying to 3-cylinders, 4-cylinders, 6-cylinders, 8-cylinders engine
2. With the MAP sensor, combustion efficiency of the autogas fuel system is higher
3. The hardware is optimized, so as to have stronger anti-interference ability
4. Automotive connectors, high durability
| Application | CNG or LPG |
| Material | ABS Plastic |
| Cylinder Type | Sequential Injection 3 /4 / 6 /8 Cylinder |
| Dimension | 6.5cm*6cm*4.5cm |
| Weight | 0.05kg |
| Voltage | DC 12V |
| Connector | 5-pin |
| Working temperature | -40~120℃ |
